Kev's 2005 Dodge Magnum R/T HEMI
*Miscellaneous Information:
*Motor Oil - SAE 5W-20
*Oil Filter - Mopar 05281090
*Key Battery - CR2032
*Tune-Ups - 5.7Liter Hemi - 30,000 Miles
*Spark Plug - Champion RE14MCC4 (EOM)
*Spark Plug - NGK LZTR4A-11 (Optional)
*PBR Built Front Caliber
*Halogen Low Beam Bulb - 9006
*Halogen High Beam Bulb - 9005
*Halogen Fog Light Bulb - 9145 (aka H10)
*Front Turn Signal Bulb - 3457A
*FACTORY OPTIONS:
Brillant Black Crystal Pearl Paint
Medium Slate Gray Royale Leather with
Dark Slate Gray Upper Interior Trim
Electronic Stability Control (ESP)*
All Speed Traction Control*
Emergency Brake Assist*

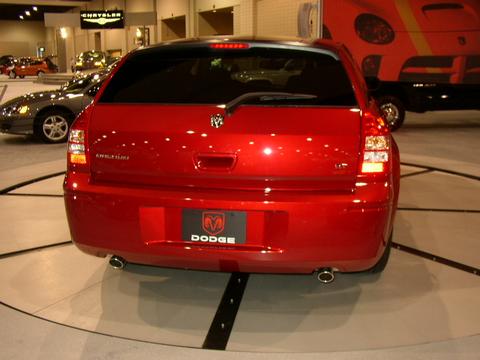

Dual Rear Exhaust with Dual Bright Tips*
Power Glass Sunroof**
Sunscreen Privacy Glass*

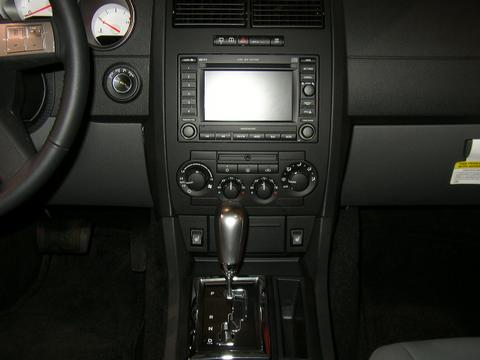

DVD Navigation System with GPS**
6-CD/MP3 Player
AM/FM Stereo Radio
Electronics Convenience Group**
Steering Wheel-Mounted Audio Controls
HomeLink®, Universal Garage Door Opener
Temperature and Compass Gauge
Instrument Cluster with Display Screen
Security Alarm
Traveler/Mini Trip Computer
Electronic Vehicle Information Center
Convenience Group II**
Air Conditioning w/2-Zone Auto Temp
Heated Front Seats
Power Front Seats
(8-Way Driver's Seat/6-Way Passenger)
Power Adjustable Pedals
288-Watt Digital Amplifier
Six Boston Acoustics Speakers*
Tilt/Telescoping Wheel*
* = Standard
** = Option
*CUSTOM UPGRADES:
APPEARANCE:
Black Painted Calipers
Formula One 28% Film Tint
Brilliant Black Painted Mopar
Splash Guards
EXHAUST (coming):
Corsa 14177 Catback
INTAKE:
K&N AirCharger 63-1114
LIGHTING:
Sylvania SilverStar Bulbs
9145ST (Fog Lamps)
FUTURE DUBS:
Black Forged with
Polished Lips
20x8.5 et24 - front
20X9.5 et24 - rear
FUTURE TIRES:
Toyo Proxes 4
245/45ZR20 Front
275/40ZR20 Rear
*SPECIFICATIONS:

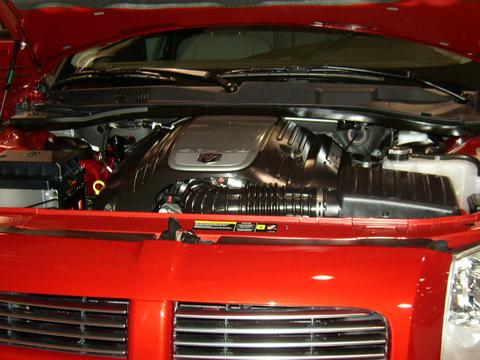

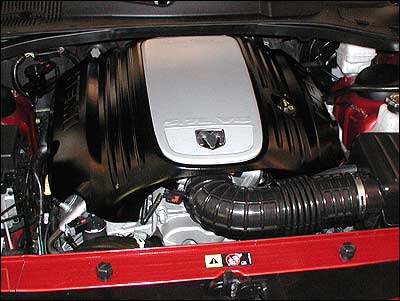

ENGINE:
5.7 Liter HEMI OHV V-8 (345 cu in)
Multi-Displacement System (MDS)
90-degree V-Type 16 Valve
Cast Iron Block/Alloy Heads
Horsepower - 340 bhp @5000 rpm
Torque - 390 lb-ft @4000 rpm
Bore & Stroke - 3.92x3.58 inches
Compression Ratio - 9.6:1
Redline - 5800 rpm
Oil Capcity - 7.0 qt (6.6L)
Champion Spark Plugs (16)
TRANSMISSION/REAR AXLE:
5-Speed Electronic "AutoStick"
Rear Axle Ratio - 2.82:1
BRAKES:
Front - Dual Pistons Caliper
13.6x1.1 inch Vented
Rear - Single Piston Caliper
12.6x0.87 inch Vented
TIRES:
Continental ContiTouring CH95
225/60HR18 - Front & Rear
ALLOY WHEELS:
Polished Finish
18x7.5 Offset - et24
Bolt Pattern - 5x115
Center Hub Bore - 71.5mm
PERFORMANCE (Factory):
Zero to 60 MPH - 6.3 sec
Standing 1/4 Mile - xx.x @ xxxmph
Max Speed - 126 mph (Limited)
WHEELBASE:
120.0 inches
LENGTH:
197.7 inches
WIDTH:
74.1 inches
HEIGHT:
58.3 inches
TRACK:
63.0 inches - Front
63.1 inches - Rear
OVERHANG:
34.9 inches - Front
42.8 inches - Rear
GROUND CLEARANCE:
5.6 inches
CURB WEIGHT:
4125 pounds
WEIGHT DISTRIBUTION:
Front - 52%
Rear - 48%
PASSENGER VOLUME:
105.9 cubic feet

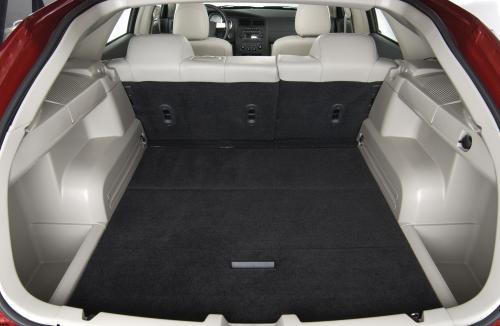

CARGO VOLUME:
98.8 cubic feet
TURNING RADIUS:
38.9 feet
COEFFICIENT OF DRAG:
0.35 Cd.
FUEL:
19.0 gallons (89 Octane)
EPA Fuel Rating - 17/25
RANGE (Estimated):
Highway - 475 Miles
City - 323 Miles
DRIVE & VEHICLE TYPE:
RWD Large Wagon
ORIGIN:
Ontario Canada
Build Date - 06/16/2004

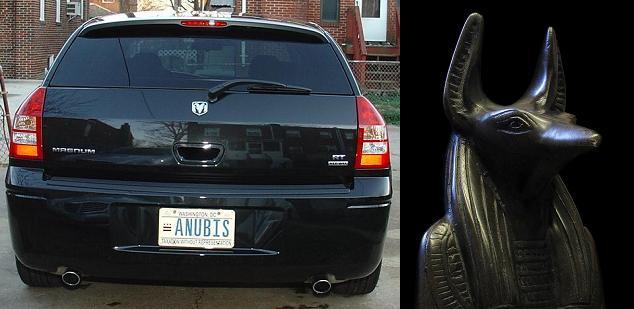

Anubis - "Lord of the Dead" --- "God of the Underworld"
